Bi-concave Lens

Both surfaces of the double concave lens are concave and have the same radius of curvature. A biconcave lens with a negative focal length is usually used to collimate a beam, increase (decrease) the focal length, or enlarge (reduce) the image.

Quantity:

Both surfaces of the double concave lens are concave and have the same radius of curvature.    A biconcave lens with a negative focal length is usually used to collimate a beam, increase (decrease) the focal length, or enlarge (reduce) the image.

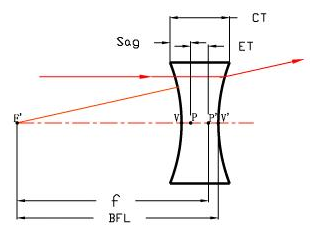

2894f07e05cd3c7c536252ebe13d19c

Basic Technical Parameters



Tolerance of Dimension: ±0.05mm

Surface Accuracy:  1/2λ,λ/4 per φ25.4mm

Centration:≥1′
Surface Quality:  60-40, 40-20, 20-10,10-5
Chamfer:  0.2-0.3mm×45°
Clear Aperture: >90%
Polish: High-precision Polish on Both Surfaces



Biconcave lenses are often used in systems to expand the beam of light or to increase the focal length, and can also be used in laser beam expansion, light readers, observers, and projection systems.
