Corner Cube

A corner cube is composed of three perpendicular right angles on which the incident light is reflected and returned. No matter what the incident Angle is, the reflected light is always parallel to the incident light and the reflected Angle is always 180 degrees.
Availability:
Quantity:

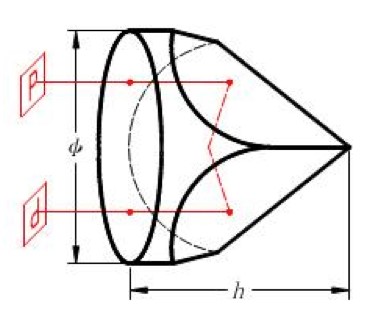

A Corner cube  is composed of three perpendicular right angles on which the incident light is reflected and returned. No matter what the incident Angle is, the reflected light is always parallel to the incident light and the reflected Angle is always 180 degrees. This is a very useful feature that can be used to ensure a 180 degree reflection Angle if the prism cannot be precisely aligned. The reflection images are inverted. Based on its characteristics, the cone is often used in remote measurement, optical signal analysis and laser equipment.


Parameter


Material: H-K9L, Fused Silica
Dimension Tolerance:+0/-0.1mm
Thickness: ±0.1mm
Angle Tolerance:< 30 ''
Surface Accuracy : λ/10-λ/2
S/D : 60/40 ; 40/20; 10/5
CA:>90%
Chamfer:Safety Chamfer<0.2X45°
Coating: Based on customer requirement
