Dove Prism

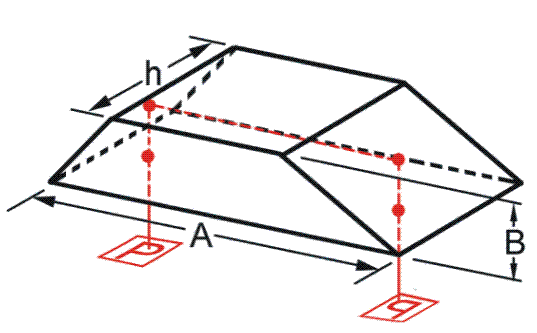

Dove prism is an image rotator. After the light passes through the prism, the image is reversed 180 degrees. In addition, when the prism is rotated on its optical axis, the rotation Angle of the image is twice that of the prism.

Quantity:

Dove Prism

Dove prism is an image rotator. After the light passes through the prism, the image is reversed 180 degrees. In addition, when the prism is rotated on its optical axis, the rotation Angle of the image is twice that of the prism.

fcdc84c9ce4efbea31d13d79102e169

Parameter

Material: H-K9L, Fused Silica
Tolerance
:+0/-0.1mm
Thickness Tolerance: ±0.1mm
Angle Tolerance
:< 30 ''
Surface accuracy : λ/10-λ/2
S/D : 60/40 ; 40/20; 10/5
CA
:>90%

ChamferSafety Chamfer<0.2X45°

Coating: Based on customer requirements
