Pentagonal Prism

Pentagonal prism is one of the fixed-angle (90 °) beam redirectors. It has two purposes: one is that regardless of the incident angle on the first surface, the emergent light turns the incident light to a certain angle (90 °); the second is that it is different from a right-angle prism in that the resulting image is There is no specular reflection in rotation. Pentagonal prisms are commonly used in camera viewfinders, image observation systems, or measuring instruments.

Quantity:

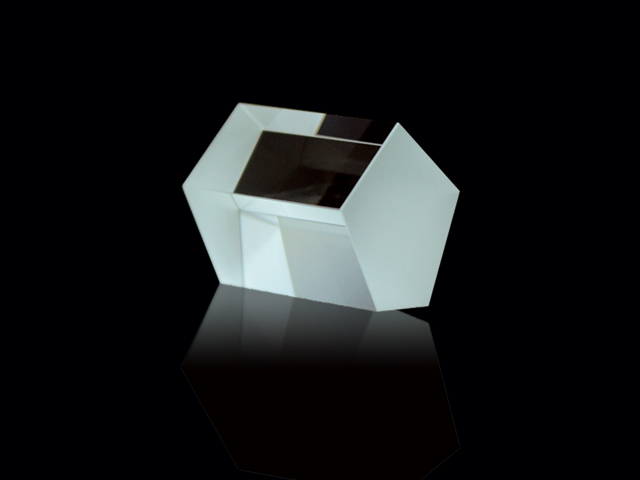

Pentagonal prism

Pentagonal prism is one of the fixed-angle (90 °) beam redirectors. It has two purposes: one is that regardless of the incident angle on the first surface, the emergent light turns the incident light to a certain angle (90 °); the second is that it is different from a right-angle prism in that the resulting image is There is no specular reflection in rotation. Pentagonal prisms are commonly used in camera viewfinders, image observation systems, or measuring instruments.

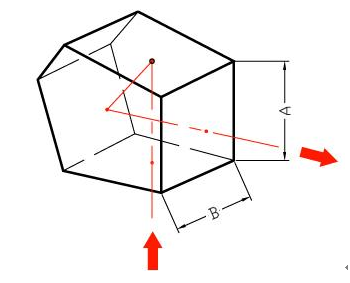

e408fc30117efcc170e0d44703fddba

Parameters

Material: H-K9L; fused quartz;

Dimensional tolerance: + 0 / -0.1mm

Thickness tolerance: ± 0.1mm

Angle tolerance: <30 ''

Surface accuracy: λ / 10-λ / 2

Finish: 60/40; 40/20; 10/5

Clear aperture:> 90%

Chamfer: safe chamfer <0.2X45 °

Coating: coating according to customer requirements
