Right Angle Prism

Right Angle prisms are commonly used to bend light paths or to deflect the image of an optical system by 90°. Depending on the orientation of the prism, the image can be left to right and upside-down. Right Angle prisms can also be used in conjunction, beam migration and other applications.
Availability:
Quantity:

Right Angle prisms are commonly used to bend light paths or to deflect the image of an optical system by 90°. Depending on the orientation of the prism, the image can be left to right and upside-down. Rectangular prisms can also be used in conjunction, beam migration and other applications.

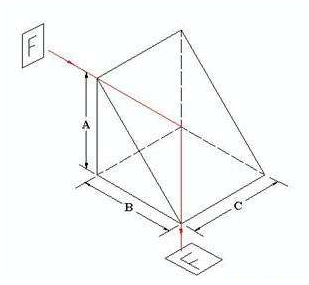

9a51f757f68306168736fac42ce0738

Parameter


Material: H-K9L;Fused
Tolerance:+0/-0.1mm
Thickness tolerance: ±0.1mm
Angel Tolerance:< 30 ''

Surface Accuracy: λ/10-λ/2

S/D: 60/40 ; 40/20; 10/5
CA:>90%
Chamfer:Safety Chamfer<0.2X45°
Coating: Based on customer’s requirement
