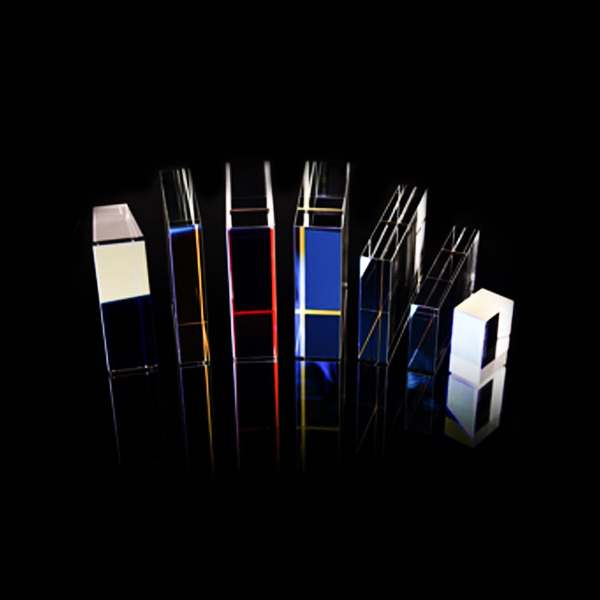

Sapphire Optical Guide

Sapphire crystal light block is a kind of high purity sapphire crystal, a cube optical glass, all optical polishing six sides, on one end surface plating by the filter membrane, through to the light through the sides of the light piece of total reflection by another end exit, and then radiation to the skin surface to laser cosmetic.

Quantity:

Sapphire crystal light block is a kind of high purity sapphire crystal, a cube optical glass, all optical polishing six sides, on one end surface plating by the filter membrane, through to the light through the sides of the light piece of total reflection by another end exit, and then radiation to the skin surface to laser cosmetic.


Parameter


Material:Sapphire

Transmission:>90%

CA:>95%

Tolerance:+/-0.1mm

Dimension could be customized.

Chamfer:<0.1X45° or <0.3~0.5X45°

S/D:60-40/40-20/10-5

Because of its optical properties of sapphire crystal, it is applied in the aspects of photon skin softening instrument, laser wrinkle removing instrument, laser cosmetology instrument and so on.
