Wedge Prism

It is an optical prism with an oblique slope, mainly used in the optical field for beam control deviation. The inclination of both sides of the wedge angle prism is relatively small. It can deflect the light path to the thicker side. If only one wedge prism is used, the incident light path can be offset by a certain angle. When the two wedge prisms are used in combination, they can be used as anamorphic prisms, which are mainly used to correct the laser beam. In the optical field, the wedge prism is an ideal optical path adjustment device. Two rotatable prisms can adjust the direction of the outgoing beam within a certain range (10 °).

Quantity:

Wedge prism


 It is an optical prism with an oblique slope, mainly used in the optical field for beam control deviation. The inclination of both sides of the wedge angle prism is relatively small. It can deflect the light path to the thicker side. If only one wedge prism is used, the incident light path can be offset by a certain angle. When the two wedge prisms are used in combination, they can be used as anamorphic prisms, which are mainly used to correct the laser beam. In the optical field, the wedge prism is an ideal optical path adjustment device. Two rotatable prisms can adjust the direction of the outgoing beam within a certain range (10 °).

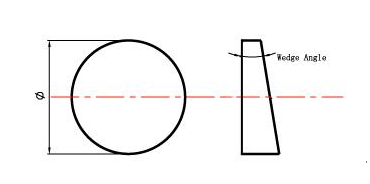

8e604f86259352871309df41c1cacc2


Parameters



Material: H-K9L; fused quartz (customizable)

Dimensional tolerance: + 0 / -0.1mm

Thickness tolerance: ± 0.1mm

Angle tolerance: <30 ''

Surface accuracy: λ / 10-λ / 2

Finish: 60/40; 40/20; 10/5

Clear aperture:> 90%

Chamfer: safe chamfer <0.2X45 °

Coating: coating according to customer requirements
